Control Type Definition

Match Lit, No Valve

Burner must be manually lit with a match or an equivalent flame source. Natural Gas Only.

Manual Valve Standard Pilot

Standing (always burning) pilot that that is turned on and off with the attached control knob.

Basic On/Off Remote

Standing pilot that is turned on and off with the control knob. The remote can turn on and off the flame.

On/Off Remote, Variable Flame

Standing pilot that is turned on and off with the attached control knob. The remote can adjust the flame height and turn the flame on and off.

Low Profile On/Off Remote, Variable Flame

Standing pilot that is turned on and off with the attached control knob. The remote can turn the flame on and off and adjust the flame height. The remote receiver is closer to the ground.

Electric Basic On/Off Remote

Electronically ignited pilot control valve that is turned on and off with the attached control knob or remote.

Electric Basic On/Off, Variable Flame

Electronically ignited pilot control valve that is turned on and off with the attached control knob or remote. The remote can adjust the flame height.

Product Details
All other valves	1 Year Warranty
APK-17	2 Year Warranty
BTUs	16/19-inch: 40,000 (NAT) / 30,000 (LP) \| 18/20-inch: 70,000 (NAT) / 45,000 (LP) \| 24-inch: 90,000 (NAT) / 65,000 (LP) \| 30-inch: 95,000 (NAT) / 75,000 (LP) \| 36-inch: 110,000 (NAT) / 90,000 (LP)
Burner Style	Standard
Burner Type	Gas Logs
Certified	Yes
Fireplace Location	Indoors
SPK-26	3 Year Warranty
Venting Type	Vented

For -02 models, add 2-inches to front and back width
Burner Size	Fireplace Dimension	Depth	Height
G45-16/19	29” Front Width / 22” Rear Width	11"	17"
G45-18/20	30” Front Width / 24" Rear Width	13"	17"
G45-24	34” Front Width / 28" Rear Width	13"	17"
G45-30	40” Front Width / 34" Rear Width	16"	17"
G45-36	46” Front Width / 40" Rear Width	16"	17"

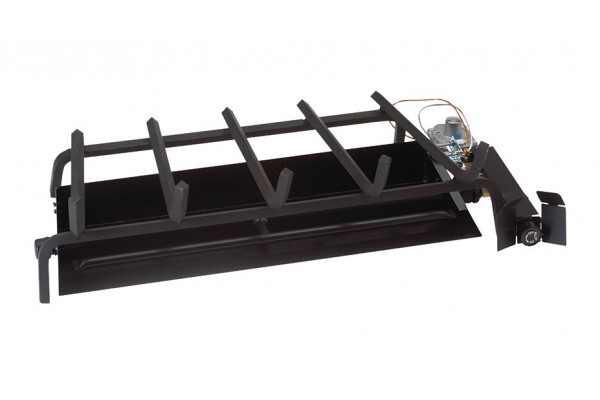

Real Fyre G45 ANSI Certified Burner
